How to Create a Custom Report Using Kentico CMS

Building a custom report within Kentico is a very simple process. Leveraging many of Kentico’s features, companies can quickly create and design reports specific to their business/industry. Reports can be generated using any data within the database with ease and customized/branded to match a company’s look/feel.
For this tutorial, I will create a report to show the number of emails sent by the site each day for a given date range.


Notes:

  • This particular report is dependent on the Kentico site being configured to retain sent emails long enough to accommodate the report parameters.
  • This report will use a stored procedure that will need to be created in the Kentico database prior to running.


Step 1

Log into the CMS Desk and click the Reporting Module under the Tools tab.



Step 2

Click “New report category” to create a new category for your company’s reports. Enter the category name / code name.



Step 3

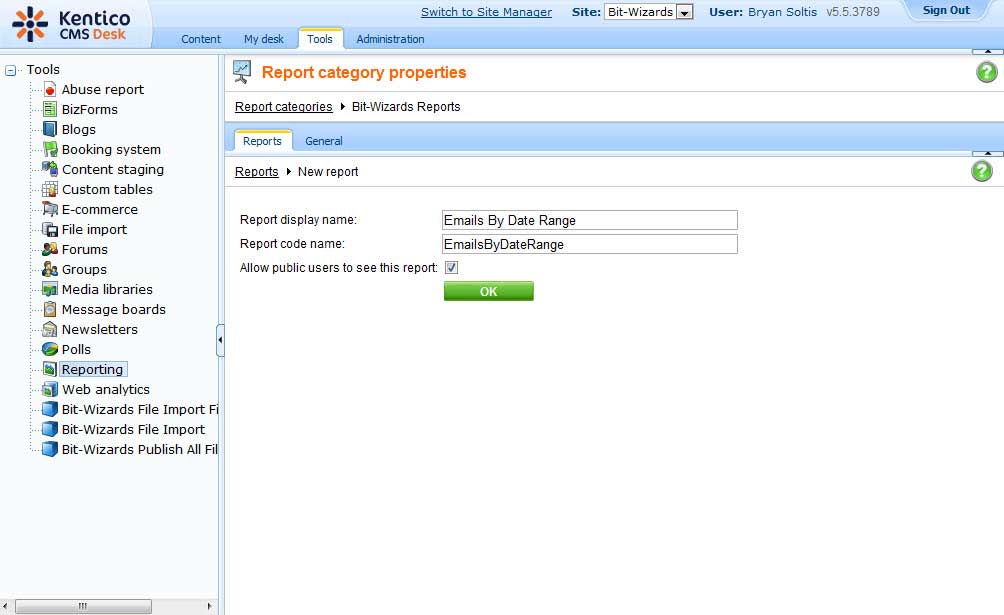

Click “New report” and enter the report name/code name



Note:

  • Check “Allow public users to see this report” only if you are going to display this report on your public site to “non-logged” in users.


Step 4

Click “Add” under the “Graphs” section to add a graph to the report and enter the following information:



Notes:

  • The "Query" field will contain the stored procedure name you created.  This could also be a simple SQL query to return data.
  • The “X-axis angle” has been rotated to display the dates vertically.
  • The “Query” contains 2 parameters for the stored procedure which we will create in the next step.


Step 5

Click “Insert” to add the graph to the report and add labels to the display the report title and the dates searched.



Note:

  • I’ve added the current site and report parameters (via macros) to display above the graph.


Step 6

Click on the “Parameters” tab and create the following parameters:

Name:               dtStartDate
Attribute type:   Date and time
Field caption:    Start Date
Field type:         Calendar
Name:               dtEndDate
Attribute type:   Date and time
Field caption:    End Date
Field type:         Calendar



Step 7

Click on the “View” and enter dates to run your report.


That’s it! You’ve created a custom report for your users to see how many emails were sent on a given date. The data returned by the "Query" is what drives the report. This value returns the data used in the graph/pie/table and can be any valid SQL statement. Additionally, reports can be customized with your company name/logo, as well as CMSContext values to further enhance the end result.
